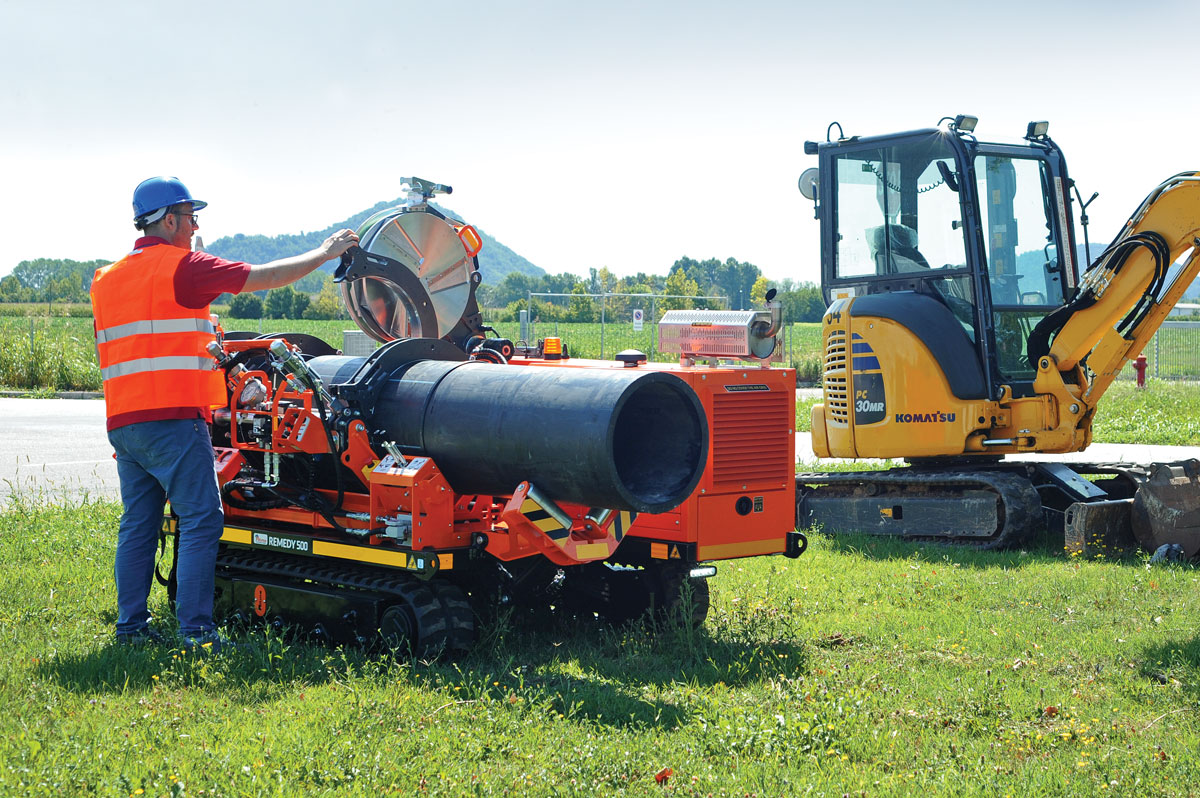

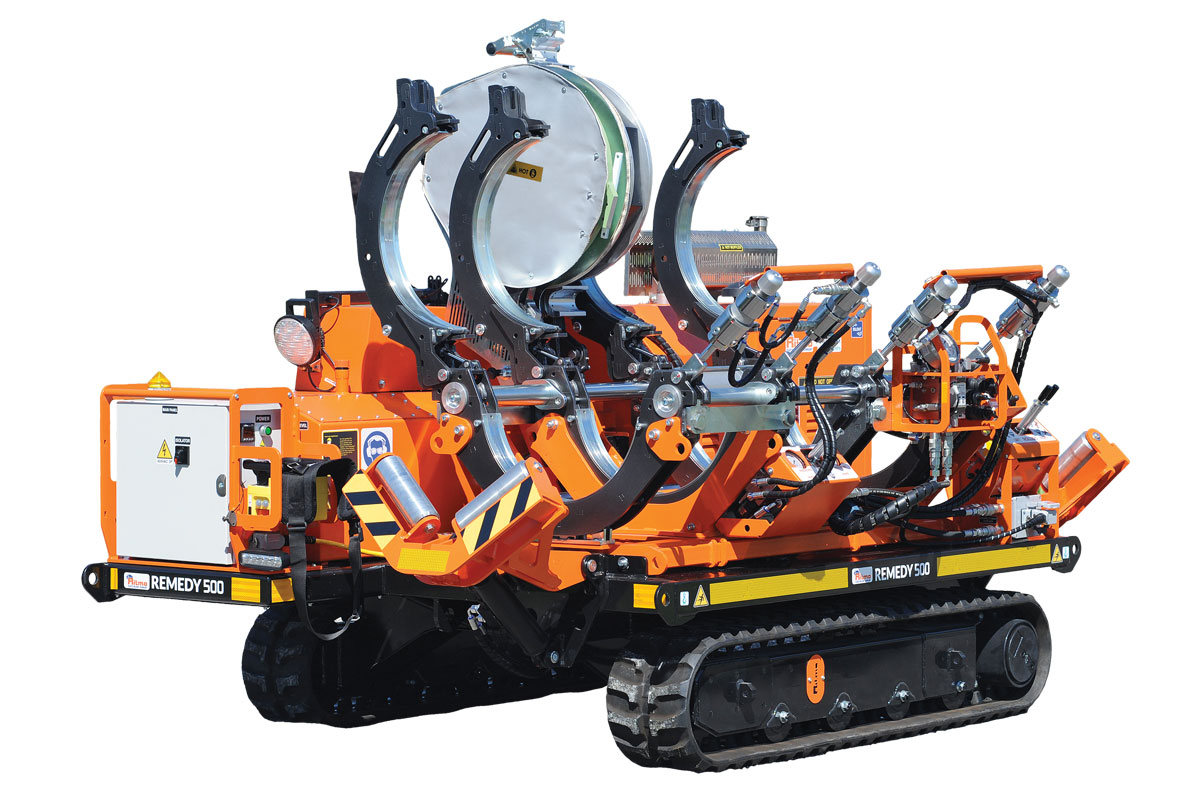

REMEDY 500 is an independent, high-productivity welding machine driven by tracks and powered by a Diesel on-board generator. Designed for butt welding HDPE and PP pipes from Ø 200 to 500 mm (from 6” to 20” IPS; from 6” to 18” DIPS). Suitable for ISO 21307 High Pressure and ASTM F2620 fusion standards.
Versatile
- Working range
from Ø 200 to 500 mm
from Ø 6” to 20”IPS
from Ø 6” to 18” DIPS
- Materials: HDPE, PP
- Manual controls
- Tracked welding machine

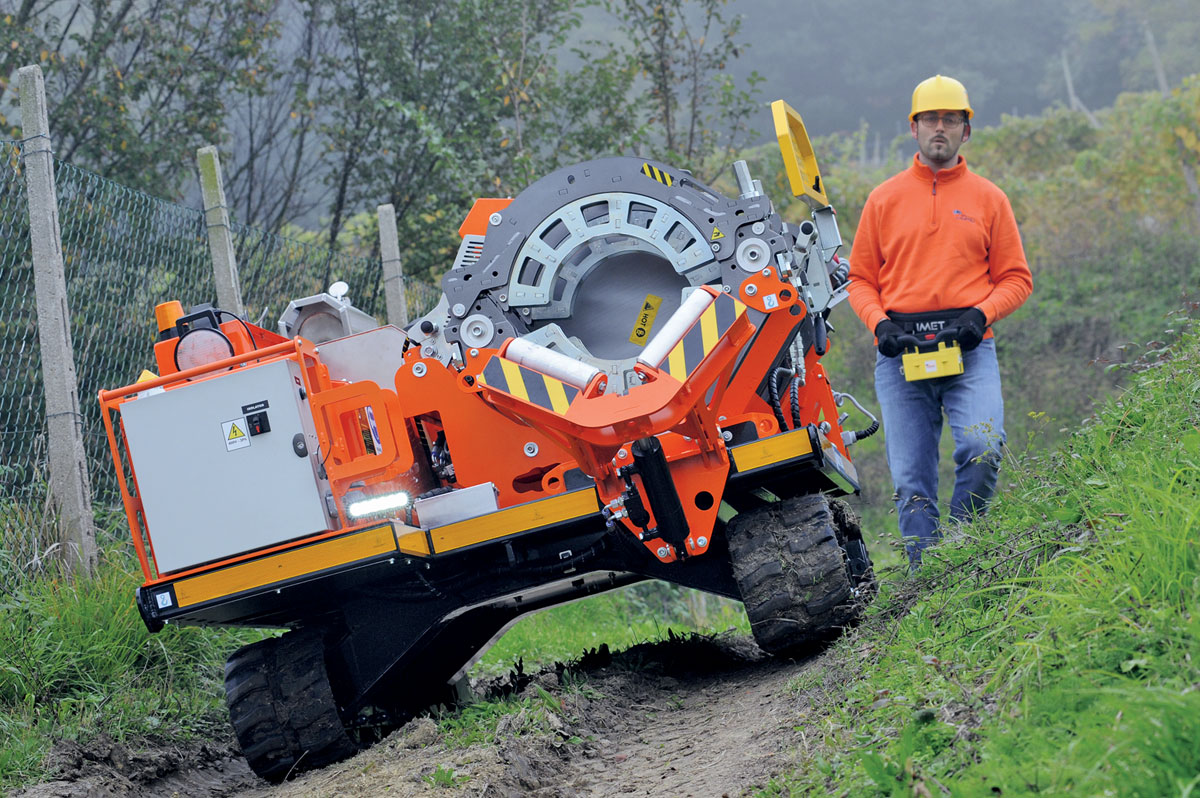

- Drives over 30% slopes
- In-ditch/user friendly
- Controlled welding cycle
- In-ditch hoses/cables 23 ft range/length
- Remote control track up to 100 m 328 ft
Accurate
- Designed to weld according to:
ISO 21307 High Pressure
ASTM F2620 standards
- Removable auxiliary panel to control
facer/heating plate
- Easily welds fittings/quick set-up time
- Heating plate with a high temperature
resistant protection casing
- Spotlights on welding area
- Insert with fast-locking system
Complete
- Self-propelled on track
- Patented System to open/close clamps
- Heating plate with hydraulic movement
- Facer with hydraulic movement
- Hydraulic side rollers
- Facer with safety microswitch

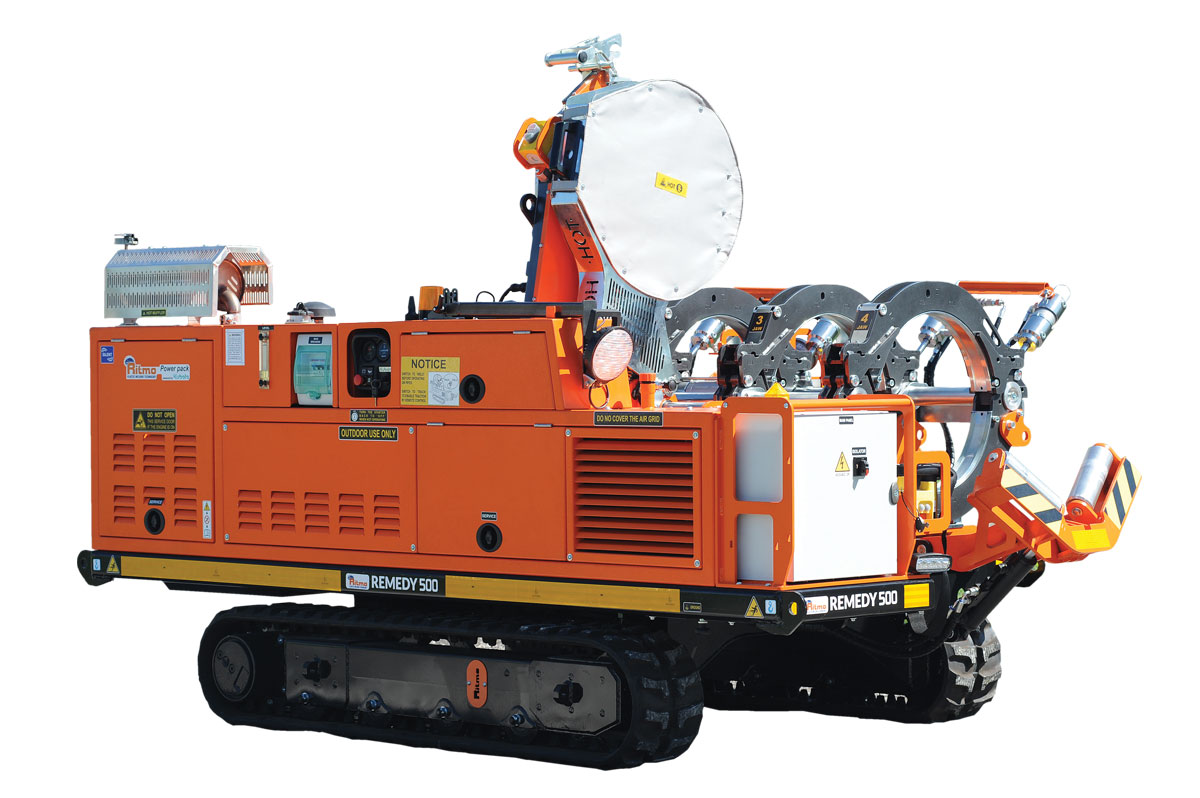

- Self-contained generator on-board
- Heater/facer on-board
HYDRAULIC CLAMPING (on request)
Remedy 500 allows the locking of the clamps in a hydraulic way. The kit is designed to work with the removal of the 4th clamp
for welding fittings or stub-end/flanges.
Technical features:
Materials | HDPE/PP |
Working range | Ø 200 ÷ 500 mm Ø 6” ÷ 20” IPS Ø 6” ÷ 18” DIPS |
On board generator * | 1123 cc - 17 Kw |
Fuel | Diesel |
Fuel tank | 43 litres (11.3 gal) |
Autonomy | 12 H |
Max operating slope | 30% |
Remote control track | up to 100 m (328 ft) |
Total weight | 2250 Kg (4960 lb) |
Body machine sizes Max dimentions on site | 2818 x 1806 x 1961 mm 9.2 x 5.9 x 6.4 ft |
