Fitting Fabrication


OMEGA
OMEGA 400 – 250 and OMEGA 630 - 250 are a saddle fusion machines for workshop use. Perfect to manufacture special parts, such as reduced tees and crosses for water pipeline used in drainage/sewerage applications. STANDARD COMPOSITION: - Machine body with manual carriage for socket centring - Hydraulic jaws for locking pipe & branches - Side support for branches - Quick release inserts - EASY LIFE control panel: allows a simple-easy-repeatable welding cycle, reducing the...
alfa 200 ctb
ALFA 200 CTB - workshop welding machine designed to fabricate fittings by joining pipe segments with the help of special jaws: Ebows up to Ø 200 mm 6" DIPS Tees, Crosses, Wyes (Y) up to Ø 160 mm 6" IPS  The ALFA 200 CTB can also weld special and moulded fittings such as elbows, tees and flange necks, thanks to a different type of special jaws. Composed of: - A machine body with two carriages, one of which driven by a hydraulic system, and two lateral supports with inserts - A...
alfa 400 manual
ALFA 400 Manual Workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws:  elbows: from Ø 90 mm to 400 mm tees - crosses - wyes: from Ø 90 mm to 315 mm  The ALFA 400 Manual welding plastic materials such as: HDPE, PP. Composed of: - A machine body with two carriages, one of which driven by a hydraulic system - A manual hydraulic control panel for the welding cycle - A milling cutter - A Teflon-coated heating plate,...

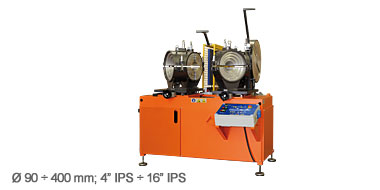

alfa 400 easy life
ALFA 400 EASY LIFE workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws:  elbows Ø 90 ÷ 400 mm (4" IPS ÷ 16" IPS) tees - crosses - wyes  Ø 90 ÷ 315 mm (4" IPS ÷ 12" IPS)  The ALFA 400 EASY LIFE can also weld special and moulded fittings such as elbows, tees and flange necks, thanks to a different type of special jaws. Composed of: - A machine body with two carriages, one of which driven by a hydraulic system; a...

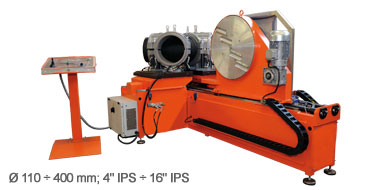

alfa 400 ctb
ALFA 400 CTB is a workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws. Elbows Ø 110 ÷ 400 mm (4" IPS ÷ 16" IPS)Tees - Crosses - Wyes  Ø 110 ÷ 355 mm (4" IPS ÷ 14" IPS)Elbows and Wyes (Y) jaws opening/closing and locking movements are controlled hydraulicallyTees/Crosses jaws opening/closing movements are manual The ALFA 400 CTB can also weld special and moulded fittings such as elbows, tees and flange necks, thanks to...
alfa 630 t
ALFA 630 T is a workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws. Elbows - Tees - Crosses - Wyes  Ø 225 ÷ 630 mm (8"  IPS ÷ 24" DIPS)  All jaws movements are electro-hydraulically operated, both the open/close movement and the blocking mechanism. The ALFA 630 T can also weld special and moulded fittings such as elbows, tees and flange necks, thanks to a different type of special jaws. Composed of: - A machine body...
alfa 1000
ALFA 1000  is a workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws. Elbows  Ø 355 ÷ 1000 mm Tees - Crosses - Wyes Ø 355 ÷ 800 mm  Composed of: - A machine body with two hydraulically controlled carriages - A control panel that features the CNC system, thanks to this would eliminate any risk of error due to the operator. The CNC incorporates a data-logging that can store up to 4000 cycles. It is possible to download the...
alfa 1200
ALFA 1200  is a workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws. Elbows  Ø 630 ÷ 1200 mm Tees - Crosses - Wyes Ø 630 ÷ 1000 mm Composed of:  - A machine body with two hydraulically controlled carriages - A control panel that features the CNC system, thanks to this would eliminate any risk of error due to the operator. Possibility to pre-set 20 customized. The CNC incorporates a data-logging that can store up...
alfa 48"
ALFA 48"  is a workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws. Elbows  Ø 24" IPS ÷ 48" IPS Tees - Crosses - Wyes Ø 24" IPS to 36" IPS Composed of:  - A machine body with two hydraulically controlled carriages - A control panel that features the CNC system, thanks to this would eliminate any risk of error due to the operator. Possibility to pre-set 20 customized. The CNC incorporates a data-logging that can store...
alfa 1600
ALFA 1600  is a workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws. Elbows  Ø 710 ÷ 1600 mm Tees - Crosses - Wyes Ø 710 ÷ 1200 mm Composed of:  - A machine body with two hydraulically controlled carriages - A control panel that features the CNC system, thanks to this would eliminate any risk of error due to the operator. Possibility to pre-set 20 customized. The CNC incorporates a data-logging that can store...
