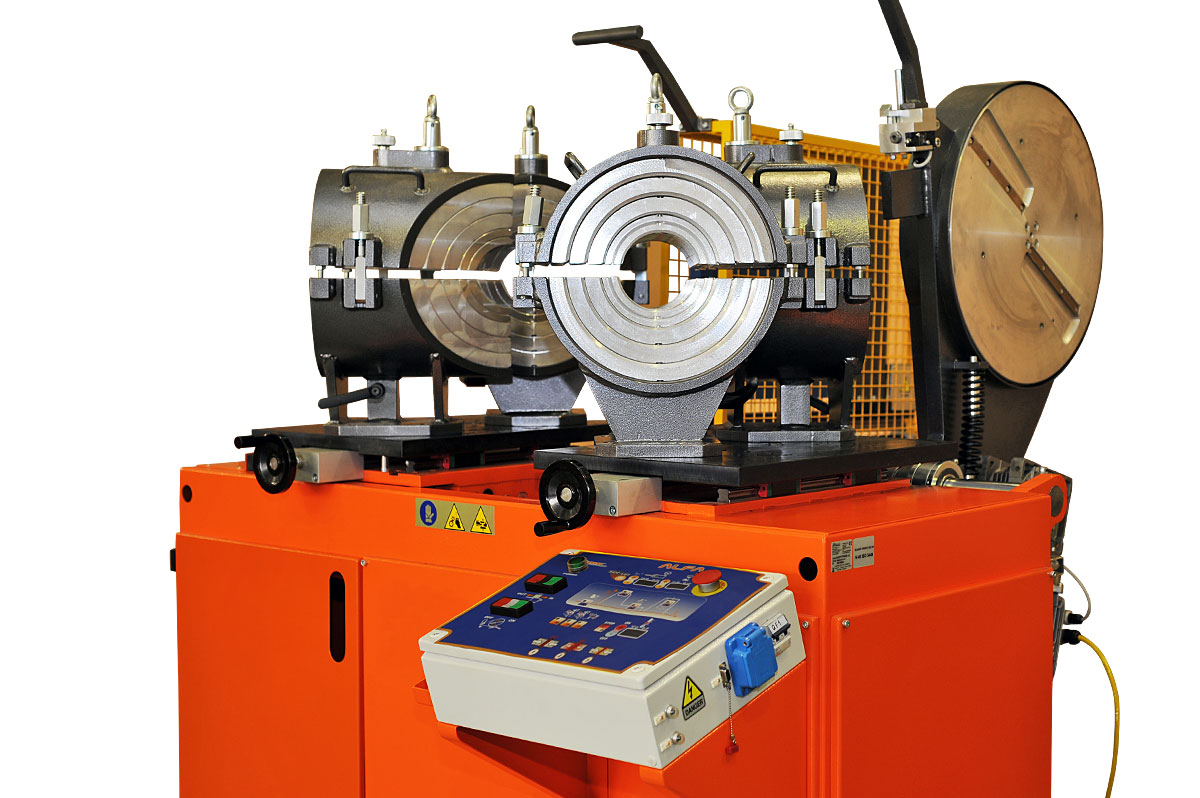

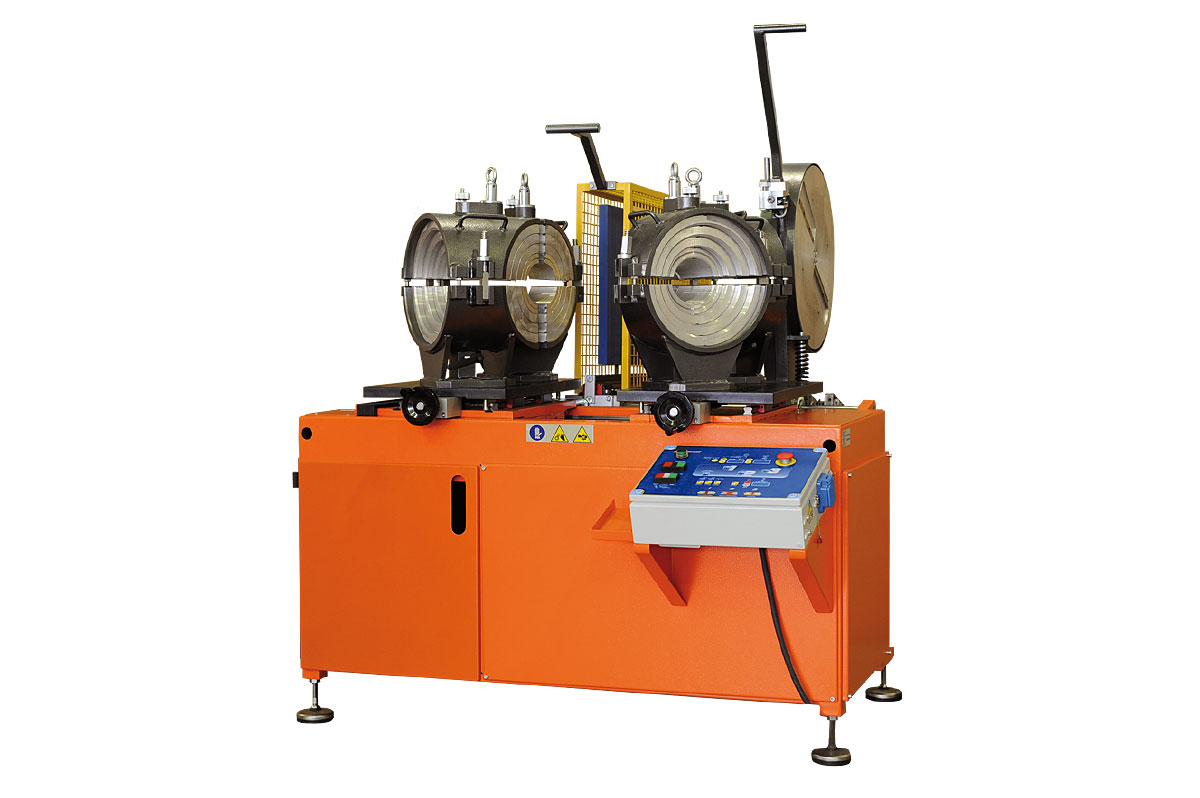

ALFA 400 EASY LIFE workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws:

elbows Ø 90 ÷ 400 mm (4" IPS ÷ 16" IPS)
tees - crosses - wyes  Ø 90 ÷ 315 mm (4" IPS ÷ 12" IPS)

 The ALFA 400 EASY LIFE can also weld special and moulded fittings such as elbows, tees and flange necks, thanks to a different type of special jaws.

Composed of:
- A machine body with two carriages, one of which driven by a hydraulic system; a control panel that features the Easy Life system, thanks to which it is possible to carry out a whole welding cycle in a simple, intuitive and repeatable way, so that the operator’s interference would be reduced to the minimum. An built-in memory allows the machine to store 4000 welding cycles (including the set diameters and SDR). Possibility to pre-set 50 customized. It is possible to transfer the welding data to a PC through a serial port (USB adaptor connector available) and data-management software. A printer can be connected to the serial port, to get a welding report at the end of each welding cycle.
- A heating plate featuring a new horizontal sliding system, automatically operated, which enables a fast side-sliding of the plate during the exchange period. The whole process is carried out with no need of disconnecting the upper cylinder, whenever it is in use.
- A milling cutter for levelling the ends of pipes and/or fittings that slides on recirculating ball slideways, with an electronic device for a soft start.
- An upper cylinder, to be positioned on the jaws, for welding extra thick pipes and/or whenever it’s necessary to use high pressures.
- Available in 230 V and 400 V.

STANDARD COMPOSITION
- Machine body with control panel EASY LIFE
- Heating plate
- Milling cutter
- Upper cylinder and service tools

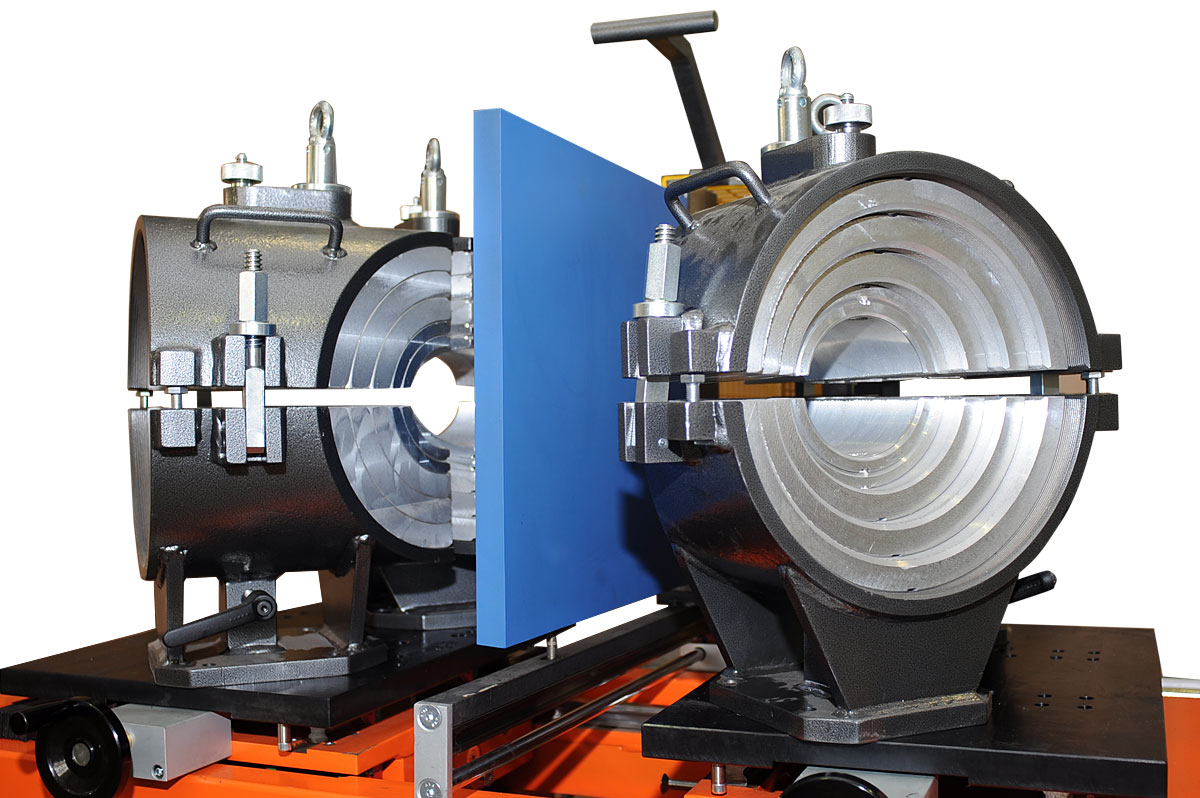

- Elbows jaws Ø 400 mm with lateral support inserts from Ø 90 to Ø 355 mm

 ON REQUEST (ACCESSORIES)

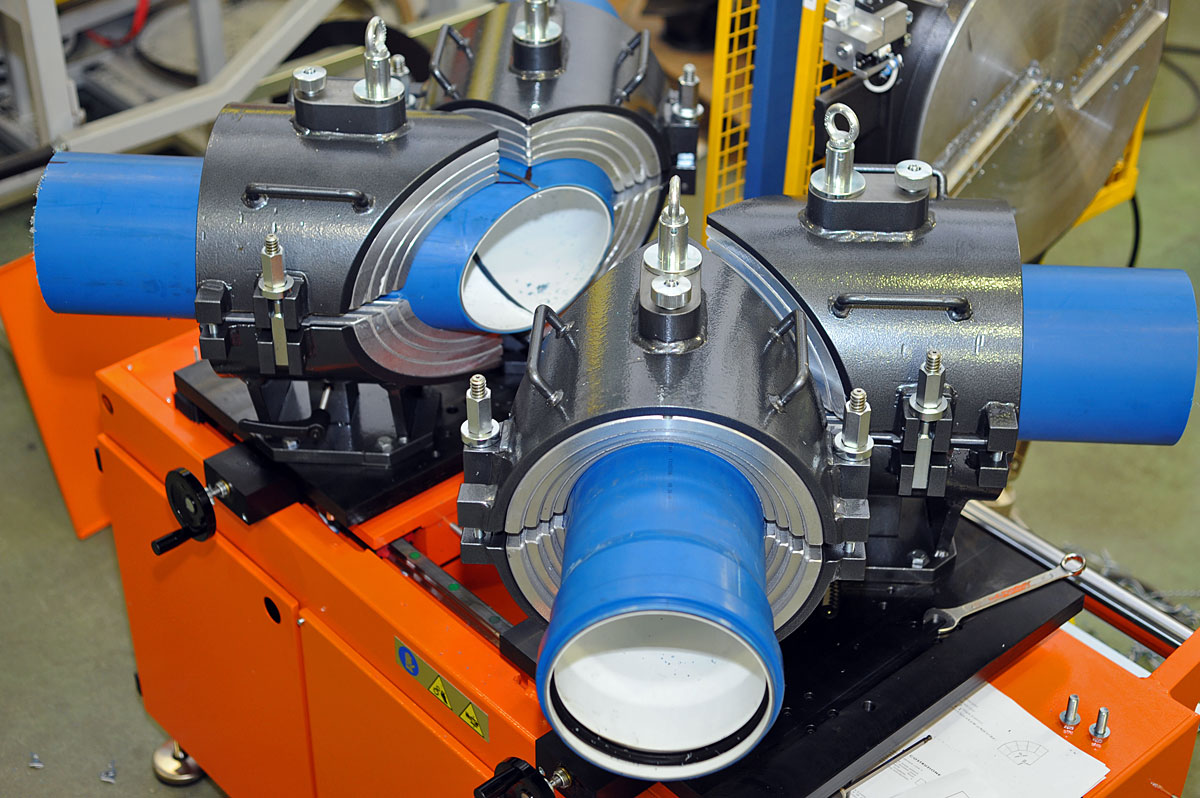

- Tees/crosses jaws Ø 315 mm inserts from Ø 90 to Ø 280 mm
- Wyes jaws jaws Ø 315 mm inserts from Ø 90 to Ø 280 mm
- Right or left special jaws Ø 400 inserts from Ø 90 to Ø 355 mm
- Tool for flange necks

elbows Ø 90 ÷ 400 mm 4" ÷ 16" IPS 4" ÷ 14" DIPS	wyes Ø 90 ÷ 315 mm 4" ÷ 12" IPS 4" ÷ 10" DIPS	tees Ø 90 ÷ 315 mm 4" ÷ 12" IPS 4" ÷ 10" DIPS	crosses Ø 90 ÷ 315 mm 4" ÷ 12" IPS 4" ÷ 10" DIPS
