Polyfusion 2-100

3 ÷ 100 mm

1 2 3 4

Polyfusion 2-100

сварки пластиковых листов

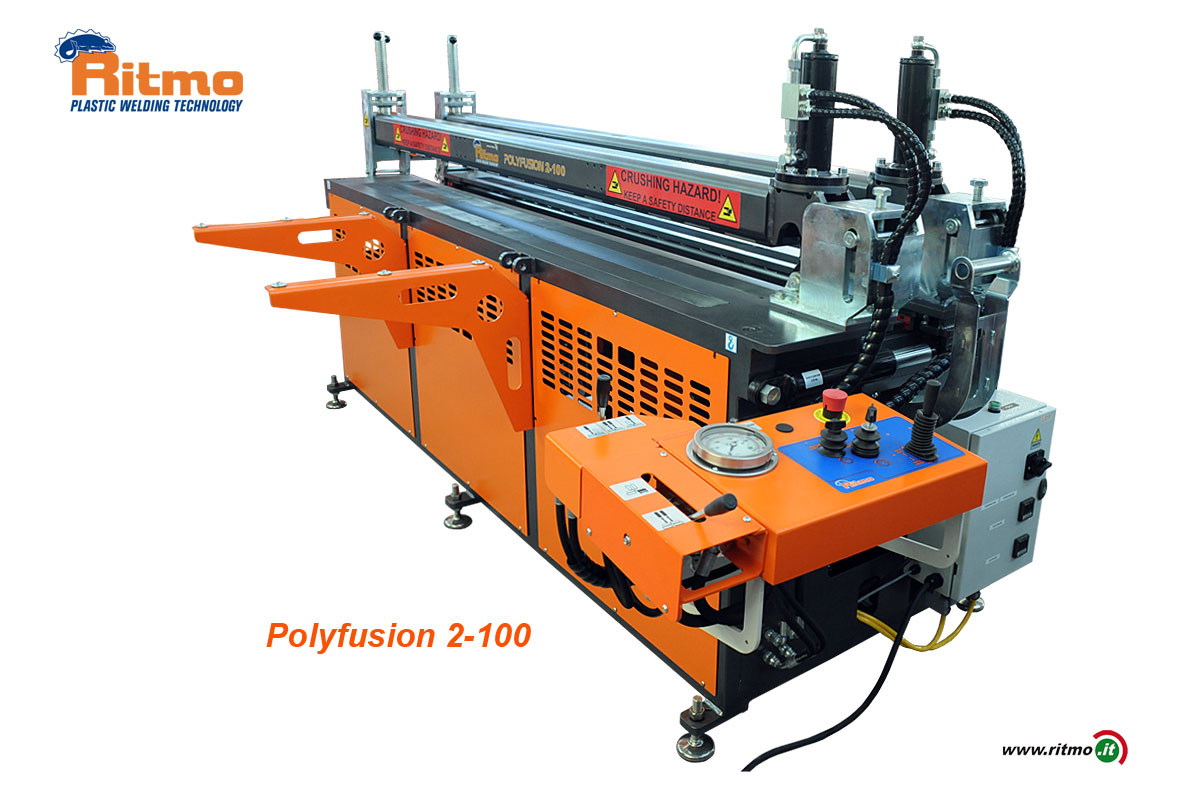

POLYFUSION 2-100 is a hydraulic  welder for HDPE and PP sheets up to two meters wide and 3 mm to 100 mm thickness. The machine can also weld twin-wall sheets.

The welding cycle is handled by a control panel which commands the hydraulic gearcase; “Dual Pressure” welding is also feasible.

The manual heating plate, located under the machine body, has a height adjustment handwheel. The temperature is controlled by a built-in high-precision electronic thermoregulator,

The sheets are fixed to the machine body by hydraulic arm; the locking arm has an articulated joint that allws its opening and the easy extraction of the welded sheets.

The welding machine has a small modulated sustaining frame to perform 90° weldings (Kit on request).
Circular welding is possible with an optional device, being the minimum achievable diameter of 500 mm with  12 mm thickness (Kit on request).





 Технические характеристики

Материалы

ПЭ, ПП

Максимальная рабочая ширина

листа

2000 мм

Минимальная сварочная толщиналиста

3 мм

Максимальная сварочная толщина листа

100 мм

Типы сварки

Плоская, под прямым углом, круговая

Питание

400Втрехфазное 50/60 Гц

Обзаяпотербляемая мощность

10500 Вт

Диапазон рабочего давления

0 ÷ 170 бар

Размеры

2833x1990x1367 мм

Вес

1200 кг
